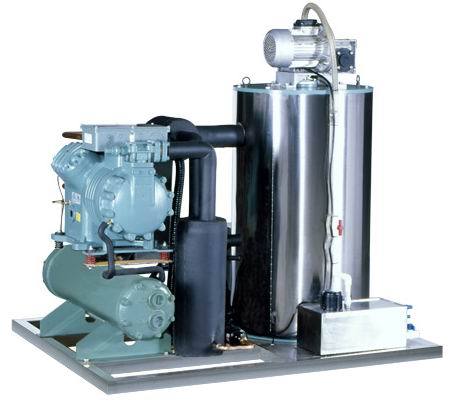

At AGICO, we can offer you commercial flake ice machine with capacity ranging from 500 to 7500 kg/24 hours, many of these flake ice machines are used for food storage, preservation, processing and freezing purposes. The ice flakes are formed at low temperature of -6℃ and can be well used in tropical areas. The AGICO Flake Ice Machine can be easily customized, fabricated and installed within a short period of time.
Ice size: 1.5-2.2 mm
Application: concrete mixing plants, chemical plants, mine cooling, skiing ground, medicine, aquatic food and so on.
Technique Parameter(can be customed to your specific need):
| Model | Capacity (kg/24Hrs) |
Compressor Power (KW) |
Supply power | Dimension (Length*Width* Height) (MM) |
||||
| Voltage/Hz/Phase | ||||||||
| KCF500 | 500 | 3.2 | 380/230 | 50/60 | 3 | 1270 | 1030 | 1850 |
| KCF1000 | 1000 | 5.2 | 380/230 | 50/60 | 3 | 1320 | 1280 | 2200 |
| KCF1500 | 1500 | 7.2 | 380/230 | 50/60 | 3 | 1320 | 1280 | 2200 |
| KCF2000 | 2000 | 8.2 | 380/230 | 50/60 | 3 | 1510 | 1400 | 2520 |
| KCF2500 | 2500 | 9.8 | 380/230 | 50/60 | 3 | 1600 | 1450 | 2680 |
Product feature:
AGICO Flake Ice Machine can be designed according to different environmental water and weather condition.
can produce ice in 3~5 minutes and the quality of ice has reached the world standard.
Superior quality, high productivity, energy saving and low maintenance.
Mode and specifications can be subject to change without notice.
Operation Details:
Refrigerant: R22 or R404a;
Cooling way: Air cooling system;
Supply power: 380V, 50Hz/60Hz
